ELECFREAKS Bitboard Kit

Electronics & Sensors

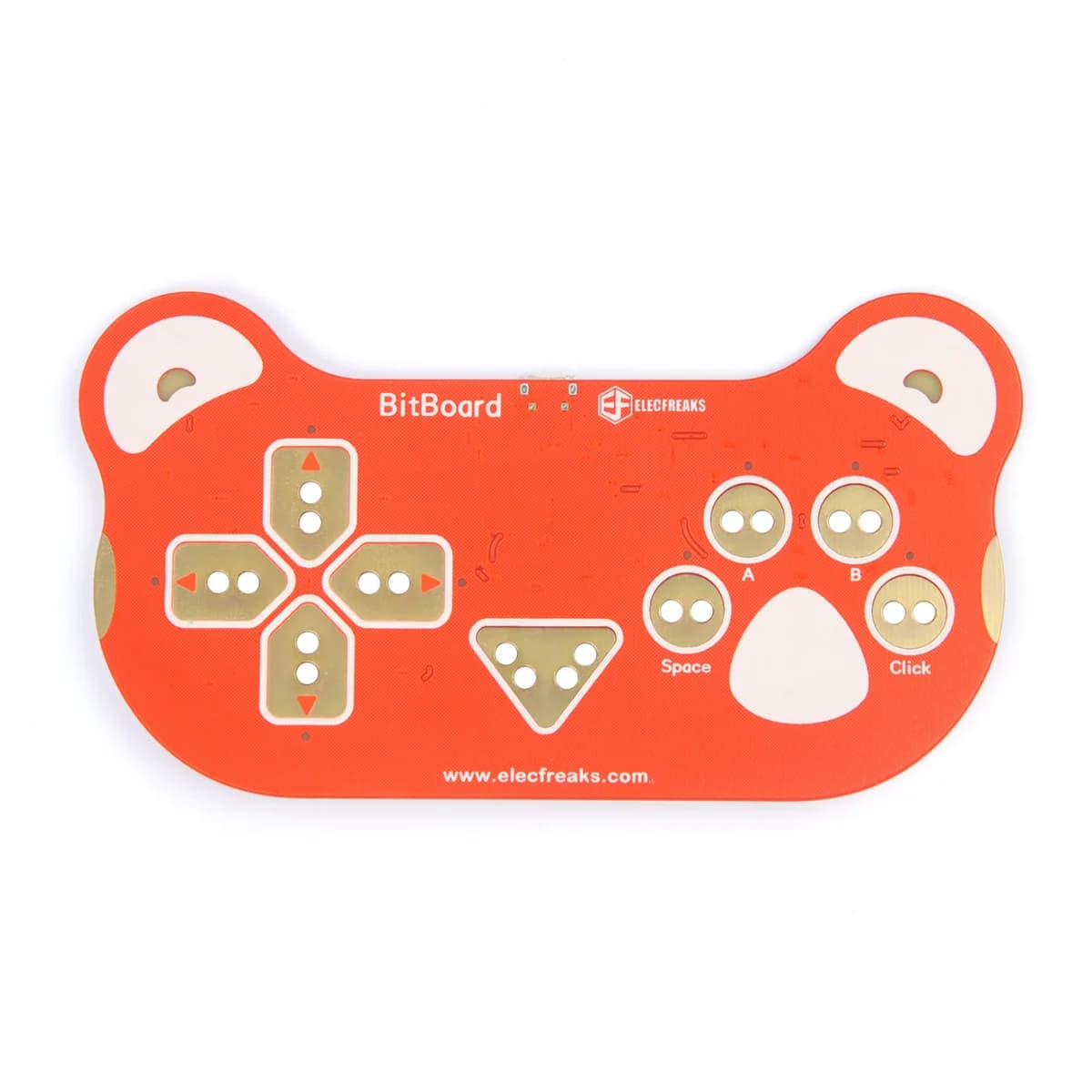

ELECFREAKS Bitboard Kit

USD 29.90

In Stock (15 available)

About this Product

The ELECFREAKS Bitboard Kit is an interactive circuit learning expansion board designed to transform everyday conductive objects into computer keyboard inputs. By connecting everyday items—such as fruit, foil, playdough, or water—via alligator clip wires, students can build custom game controllers, invent musical instruments like a fruit piano, and explore fundamental electrical conductivity concepts. Powered via Micro-USB, the Bitboard features 8 touch pads/contacts that register ground circuit connections. It is fully compatible with block-based programming environments like Scratch and MakeCode, bridging physical creativity and digital interaction for beginner and classroom STEM activities.

Features

Everyday Object Input Interface: Converts conductive items into keyboard buttons and interactive game controls
GND Circuit Touch Sensing: Detects circuit completion when users touch connected alligator clip pads
8 Conductive Contacts: Multiple pins available for mapping diverse inputs and controls
Scratch & Graphical Coding Support: Program custom sound effects, games, and keyboard key bindings via graphical drag-and-drop code blocks
Micro-USB Power Supply: Onboard USB power connection ensuring consistent circuit operation
Hands-on STEM Integration: Teaches real-world electrical conductivity, circuits, and logic through interactive building projects

What's Included

  • 1 × Bitboard Mainboard
  • 10 × Alligator Clip Cables
  • 1 × USB Cable
  • 1 × Conductive Sticker Sheet

Specifications

The Bitboard operates as a low-voltage human-interface device (HID) emulator, using ground connection detection across 8 contact terminals powered via a Micro-USB port.

Product ModelEF08250
Rated Voltage5V
Rated Current15mA
Power InterfaceMicro-USB
Number of Contacts / Pads8
Programming EnvironmentsMakeCode, Scratch
Board Dimensions~140 mm × 76 mm
Net Weight31 g
