ELECFREAKS micro:bit Jacdac Smart Exploration Kit

Robotics Kits
ELECFREAKS micro:bit Jacdac Smart Exploration Kit

USD 56.90

Out of Stock

About this Product

The ELECFREAKS Jacdac Smart Exploration Kit is an innovative, plug-and-play educational kit designed around the BBC micro:bit V2 and Microsoft Jacdac technology stack. Jacdac abstracts away complex electronic wiring by utilizing reversible, fool-proof cable connections and automatic hardware discovery, allowing sensors and actuators to be instantly recognized as soon as they are plugged in. The kit provides a selection of modular Jacdac components, including button sensors, light sensors, human infrared (PIR) sensors, magnetic sensors, knob encoders, and an 8-LED RGB light ring. It seamlessly integrates with Microsoft MakeCode, offering real-time data feedback directly within the simulator workspace. Accompanied by 10 beginner-friendly tutorials, it enables primary and middle school students to effortlessly construct smart devices, interactive nightlights, motion alarms, and IoT projects without connection errors.

Features

Jacdac Plug-and-Play Architecture: Reversible connections eliminate wiring mistakes and allow components to be added or removed dynamically without resetting the mainboard.
Automated Component Discovery: Connected modules are automatically detected and displayed in real time within the MakeCode programming interface.
Flexible Topology: Supports daisy-chain and star configuration layouts for chaining multiple Jacdac sensors together.
Rich Module Collection: Includes inputs (light, PIR motion, magnetic, button, encoder) and outputs (RGB LED ring).
Building Block & Laser-Cut Frame Compatibility: Hardware mounting holes allow integration with standard building blocks and custom laser-cut structures.
10 Guided Project Lessons: Complete curriculum covering practical projects like motion alarms, sound visualizers, night lights, and password-protected systems.

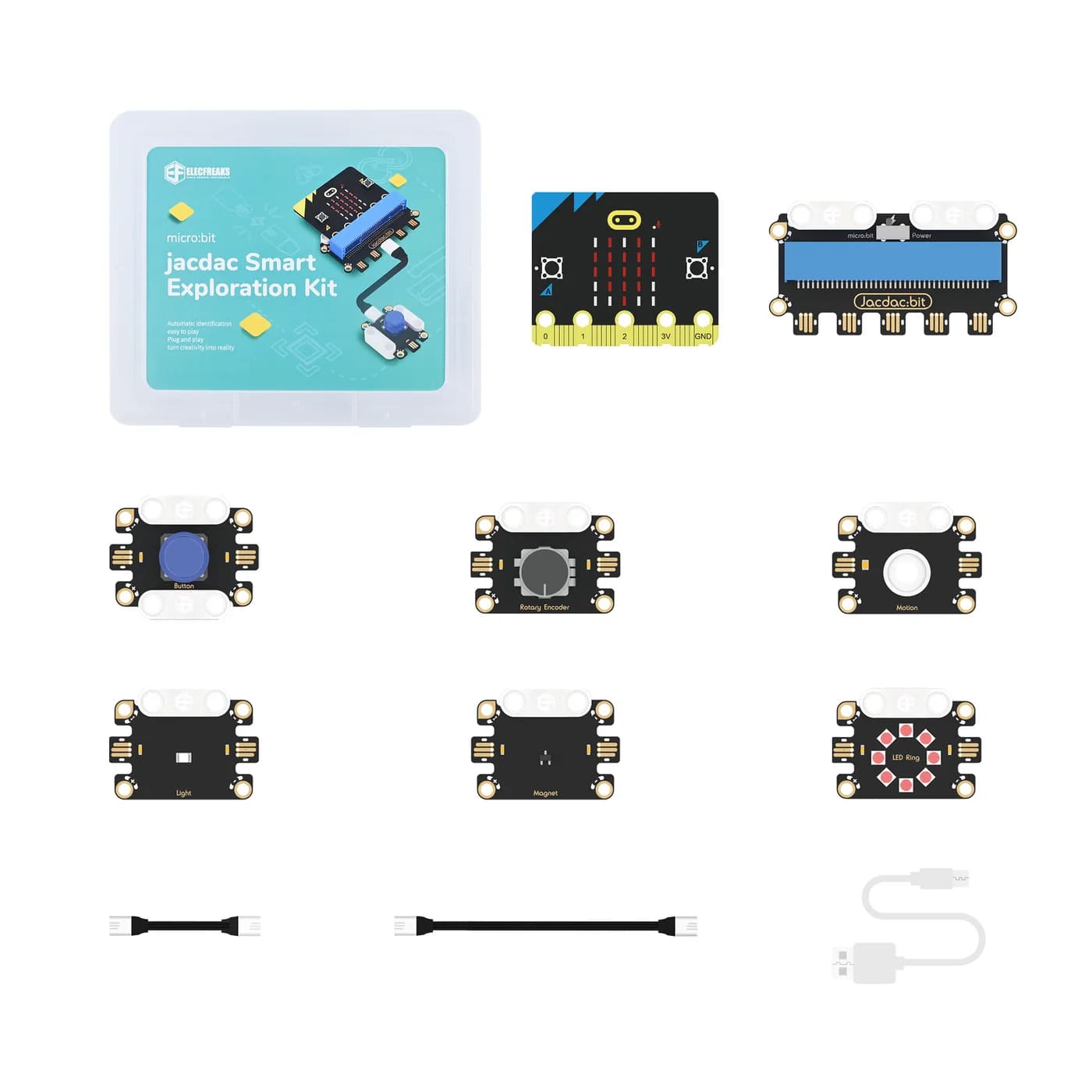

What's Included

  • 1 × Jacdac Expansion Board (for BBC micro:bit)
  • 2 × Jacdac Button Sensors
  • 1 × Jacdac Knob Encoder
  • 1 × Jacdac Human Infrared (PIR) Sensor
  • 1 × Jacdac Ambient Light Sensor
  • 1 × Jacdac Magnetic Sensor
  • 1 × Jacdac 8-LED RGB Light Ring
  • 5 × Jacdac Connection Cables (10 cm)
  • 1 × Jacdac Connection Cable (25 cm)
  • 1 × USB Cable

Specifications

The kit runs on the Jacdac physical layer protocol over standard Jacdac cables, drawing low-voltage power directly from the micro:bit V2 host through an edge-connected Jacdac expansion board.

Product ModelEF08431
Compatible BoardBBC micro:bit V2 (Not included)
Communication ProtocolJacdac Bus Protocol (Plug-and-play auto discovery)
Total Modular Components8 Modules (1 Expansion board + 7 Sensors/Actuators)
Package Dimensions185 mm × 165 mm × 44 mm
Gross Weight~266 g
Target Age Range7+ / Primary & Middle School STEM Students
Programming MethodsMicrosoft MakeCode (Blocks / JavaScript), Python
