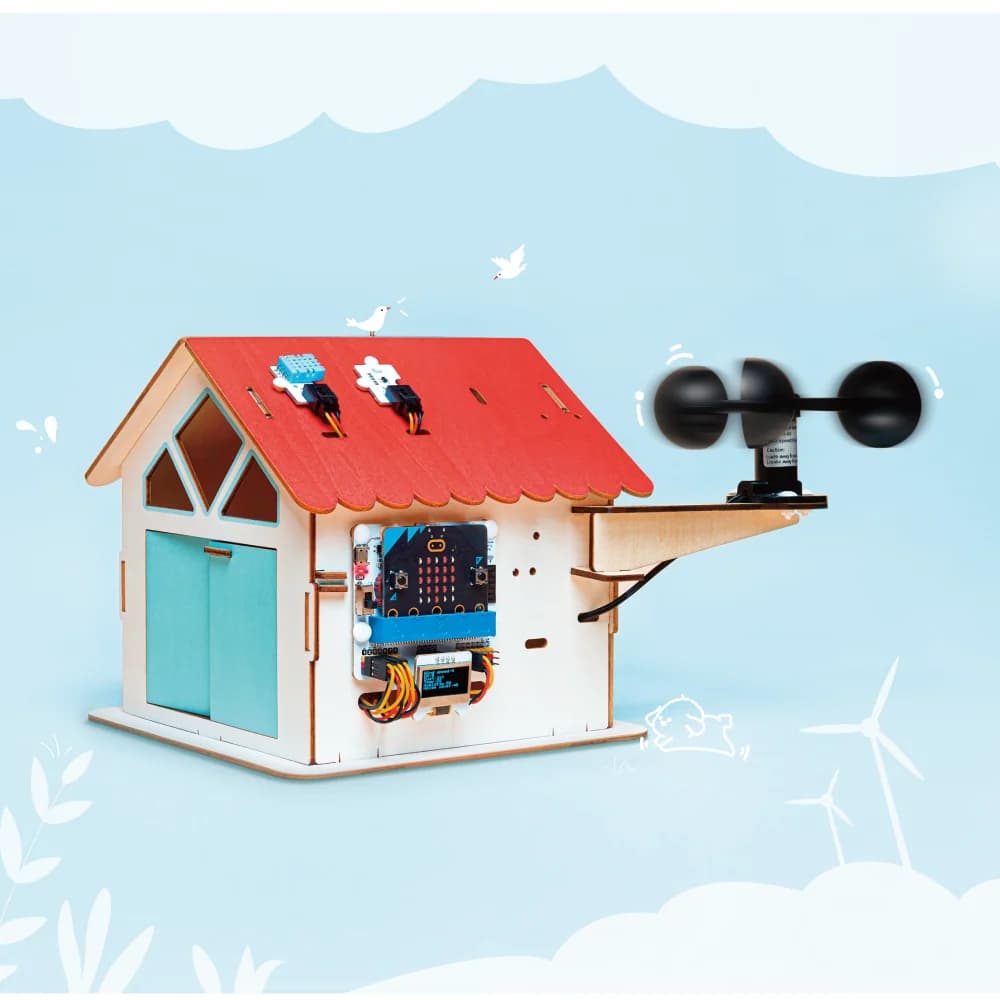

ELECFREAKS micro:bit Smart Climate Kit (Designed Based on micro:bit V2 and IOT:bit Expansion Board)

KitRobotics Kits
ELECFREAKS micro:bit Smart Climate Kit (Designed Based on micro:bit V2 and IOT:bit Expansion Board)

USD 74.90

Out of Stock

About this Product

The ELECFREAKS micro:bit Smart Climate Kit is an educational IoT and environmental monitoring kit designed around the BBC micro:bit V2 and the IOT:bit expansion board. The kit allows students to explore environmental science, meteorology, and smart agriculture by collecting real-time climate data and sending it wirelessly to IoT cloud platforms like Thingspeak. Equipped with a wide selection of Octopus series sensors—including a BME280 temperature/humidity/pressure sensor, UV sensor, wind speed sensor, dust (PM2.5) sensor, soil moisture sensor, and water level sensor—the kit bridges physical weather monitoring with digital cloud logging. Accompanied by detailed hands-on project cases (such as smart greenhouse monitors, weather stations, and pollution detectors), it empowers students to write MakeCode and Python programs to observe, analyze, and address environmental challenges.

Features

IOT:bit Expansion Board Integration: Onboard Wi-Fi module enables direct communication with IoT cloud servers (e.g., Thingspeak) to visualize live data trends.
Comprehensive Climate Sensors: Measures ambient temperature, humidity, atmospheric pressure, ultraviolet (UV) radiation, dust/air quality, wind speed, soil moisture, and water levels.
Octopus Sensor Suite: Uses 3-pin GVS plug-and-play connectors for easy, fool-proof breadboardless connections.
Real-Time Data Visualization: Displays sensor readings on the onboard 0.96-inch OLED screen or streams them over Wi-Fi.
MakeCode & Python Compatibility: Program using graphical blocks in Microsoft MakeCode or text-based MicroPython.
Practical Environmental Projects: Includes guided cases for building mini weather stations, smart agriculture monitors, air quality meters, and automated climate alarms.

What's Included

  • 1 × IOT:bit Expansion Board for micro:bit (with onboard Wi-Fi)
  • 1 × BME280 Temperature, Humidity & Pressure Sensor
  • 1 × UV Sensor
  • 1 × Dust (PM2.5) Sensor
  • 1 × Anemometer / Wind Speed Sensor
  • 1 × Soil Moisture Sensor
  • 1 × Water Level Sensor
  • 1 × 180° 9g Servo
  • 1 × 0.96-inch OLED Display Module
  • 1 × USB Cable
  • 1 × Connecting GVS Cable Pack
  • 1 × User / Project Guide Manual

Specifications

The Smart Climate Kit uses an IOT:bit breakout board to pass low-voltage GVS sensor signals to a BBC micro:bit V2 host while utilizing an ESP8266 Wi-Fi chip to transmit serial telemetry data to web-based IoT platforms.

Product ModelEF08314
Expansion BoardIOT:bit (with ESP8266 Wi-Fi Module)
Operating Voltage3.3V – 5.0V DC (via USB / IOT:bit power port)
Wireless Connectivity2.4 GHz Wi-Fi (via IOT:bit)
Display Interface0.96-inch OLED Display (I2C)
Sensor Interface Standard3-Pin GVS (Ground, VCC, Signal)
Supported Cloud PlatformsThingspeak, KidsIoT, Custom MQTT
Programming LanguagesMakeCode (Blocks / JavaScript), Python
