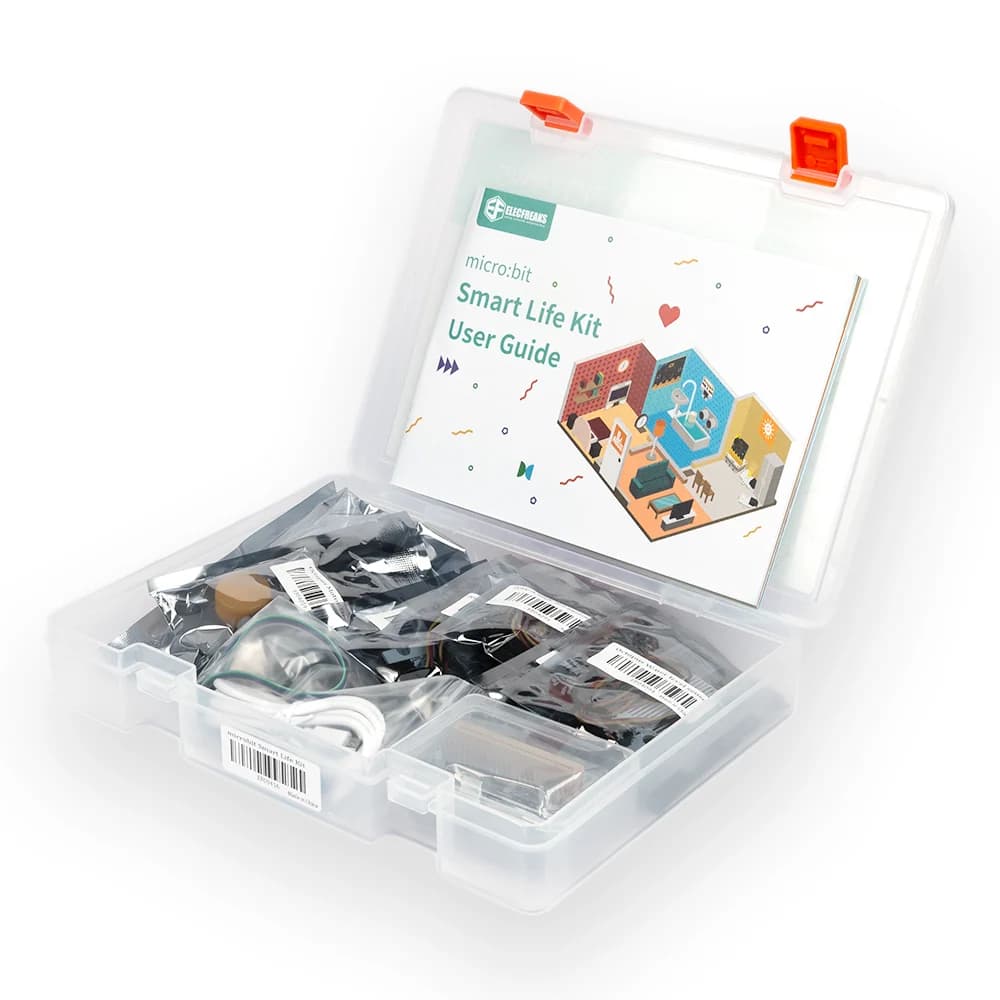

ELECFREAKS micro:bit Smart Life Kit (Without micro:bit Board)

Robotics Kits
ELECFREAKS micro:bit Smart Life Kit (Without micro:bit Board)

USD 72.00

In Stock (15 available)

About this Product

The ELECFREAKS micro:bit Smart Life Kit is an educational hands-on kit designed to help primary and middle school students build intelligent, automated home and environmental control applications. Aligned with the United Nations Sustainable Development Goals (SDGs), the kit bridges technology and everyday life through practical STEM projects. Centered around the powerful, compact Wukong Expansion Board (which features an onboard 400mAh rechargeable lithium battery and fast-charging power management), the kit includes 13 electronic sensors and actuators. These include a 3V water pump, relay module, MQ2 gas/smoke sensor, DHT11 temperature/humidity sensor, ultrasonic Sonar:bit, OLED screen, fan module, and collision sensor. Students can create interactive projects like touchless washbasins, smart lighting, automated water level monitors, touchless trash cans, and smart medicine boxes using MakeCode drag-and-drop block coding and Python.

Features

Integrated Wukong Expansion Board: Built-in 400mAh lithium battery (20-minute fast charge), integrated buzzer, power indicators, motor/servo drivers, and a 7x5 LEGO-compatible building block base plate.
13 Modular Components: Packed with sensors and actuators including a 3V water pump, 3V relay, MQ2 smoke sensor, DHT11 temp/humidity sensor, OLED display, Sonar:bit, light sensor, collision sensor, fan module, water level sensor, servo, and RGB LED.
Octopus GVS Pin Standard: Standardized 3-pin plug-and-play connections eliminate breadboard wiring mistakes.
SDG-Aligned Practical Projects: Designed to promote environmental awareness, health, and sustainability through smart automation.
Graphical & Text Programming: Seamless support for Microsoft MakeCode (Blocks / JavaScript) and MicroPython.
Building Brick Compatibility: Mounting holes and base structure integrate with standard building blocks.

What's Included

  • 1 × Wukong Expansion Board (with integrated rechargeable lithium battery)
  • 1 × 0.96-inch OLED Display Module
  • 1 × Sonar:bit (Ultrasonic Distance Sensor)
  • 1 × MQ2 Gas / Smoke Sensor
  • 1 × DHT11 Temperature & Humidity Sensor
  • 1 × Light Sensor
  • 1 × Water Level Sensor
  • 1 × Crash / Collision Sensor
  • 1 × Octopus RGB Rainbow LED
  • 1 × 3V Relay Module
  • 1 × 3V Water Pump Module
  • 1 × Fan Motor Module
  • 1 × 180° 9g Servo
  • 1 × USB Cable & GVS Sensor Harness Cable Set

Specifications

The Smart Life Kit runs on low-voltage DC signals powered by the Wukong board's internal battery, breaking out micro:bit GPIO lines into GVS pins and driving high-current devices like water pumps and fan motors via relay modules.

Product ModelEF08416
Compatible ControllerBBC micro:bit V1 / V2 (Not included)
Main Expansion CoreWukong Expansion Board
Onboard Power Supply400 mAh Rechargeable Lithium Battery
Charging Time / Interface~20 Minutes Fast Charge via Micro-USB
Battery RuntimeUp to ~40+ Minutes under full load
Display Module0.96-inch OLED Display (128 × 64 pixels, SSD1306 driver)
Structure / MountingIntegrated LEGO 7×5 standard brick grid base
Dimensions / Weight250 mm × 180 mm × 40 mm / 533 g
Programming EnvironmentsMicrosoft MakeCode (Blocks / JS), Python
